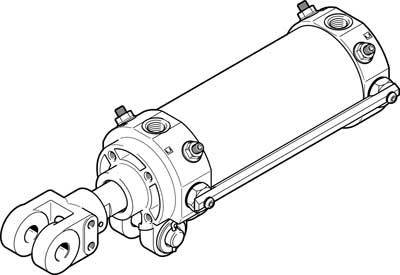

FESTO 549568 DWA-63-50-Y-A Joint cylinder Enclosure material: Aluminium wrought alloy Stroke length: 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
14-day return policy included
Highlights & Details
Joint cylinder DWA-63-50-Y-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
50 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
63 mm
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
549568
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1600 g
- Size
63
- Operating medium
ISO 8573-1:2010 [7:-:-] compliance
- Sealant
NBR
- Pneumatics connector
R1/4
- Enclosure material
Aluminium wrought alloy
- Piston diameter
63 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1870 N
- Material
Aluminium wrought alloy
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
not relevant
