FESTO 549707 DWB-50-50-Y-AB Joint cylinder Stroke length: 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details

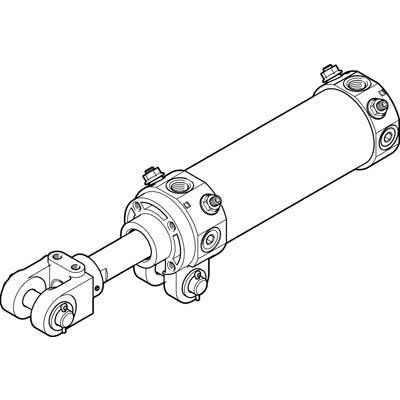

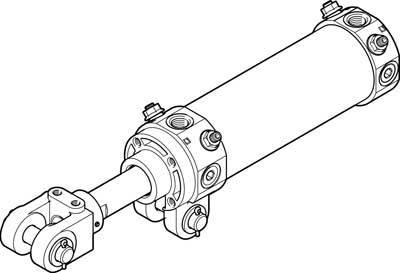

Joint cylinder DWB-50-50-Y-AB
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
50 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
549707
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1338 g
- Sealant
NBR
- Pneumatics connector
R1/4
- Piston diameter
50 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1178 N
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
yes
