FESTO 549714 DWA-63-100-Y-AB Joint cylinder Enclosure material: Aluminium Stroke length: 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
14-day return policy included
Highlights & Details

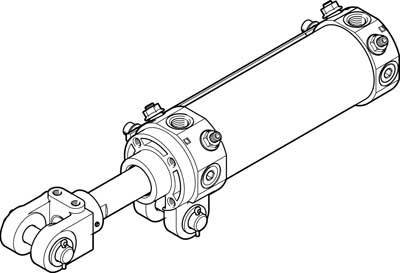

Joint cylinder DWA-63-100-Y-AB
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
100 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
63 mm
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
549714
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1600 g
- Size
63
- Operating medium
Compressed air
- Sealant
NBR
- Pneumatics connector
R1/4
- Enclosure material
Aluminium
- Piston diameter
63 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1870 N
- Material
Quenched steel
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
not relevant
