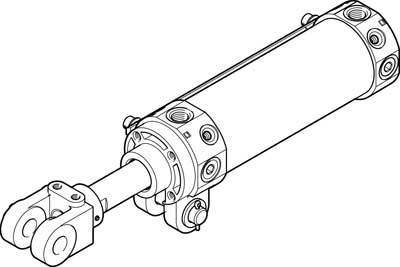

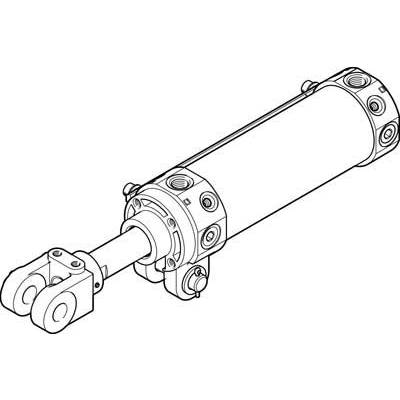

FESTO 558093 DWC-50-75-Y-A Joint cylinder Stroke length: 75 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Highlights & Details
Joint cylinder DWC-50-75-Y-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
75 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
558093
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1338 g
- Sealant
NBR
- Pneumatics connector
R1/4
- Piston diameter
50 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1178 N
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
yes
