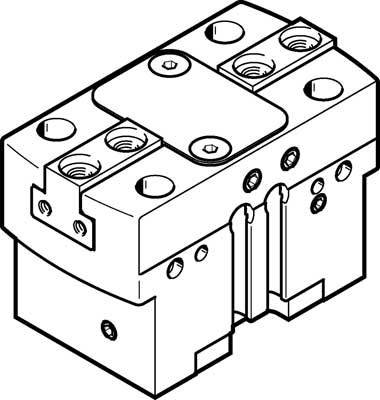

FESTO 560192 HGPT-16-A-B 2-finger gripper 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 637.82 / piece)
€ 637.82
plus VAT.
14-day return policy included
Highlights & Details
2-finger gripper HGPT-16-A-B
Technical specifications
- Product weight: 85g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
2-finger gripper
- Max. operating pressure
8 bar
- Manufacturer part #
560192
- Operating pressure (min.)
3 bar
- Accuracy (+/-)
0.2 mm
- Weight
85 g
- Connection
M5
- Material (details)
Anodised aluminum
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2120796 FESTO 560192 HGPT-16-A-B 2-finger gripper 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120796 FESTO 560192 HGPT-16-A-B 2-finger gripper 1 pc(s)
Description
Parallel gripper HGPT-16-A-B robust. Size = 16, Hub per jaws = 3 mm, Max. = ≤ 0.2 mm, Max. Exchange accuracy Jaws angle game ax, ay = ≤ 0.1 deg, Max. Jaws Game Sz = ≤ 0.02 mm
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
