FESTO 560236 HGPT-80-A-B-G2 2-finger gripper 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,150.42 / piece)
€ 2,150.42
plus VAT.
14-day return policy included
Highlights & Details

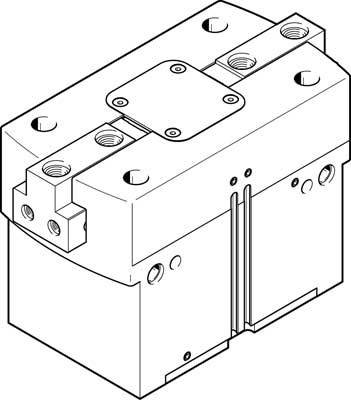

2-finger gripper HGPT-80-A-B-G2
Technical specifications
- Product weight: 6287 g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
2-finger gripper
- Max. operating pressure
8 bar
- Manufacturer part #
560236
- Operating pressure (min.)
4 bar
- Accuracy (+/-)
0.2 mm
- Weight
6287 g
- Connection
G1/4"
- Material (details)
Anodised aluminum
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2120833 FESTO 560236 HGPT-80-A-B-G2 2-finger gripper 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120833 FESTO 560236 HGPT-80-A-B-G2 2-finger gripper 1 pc(s)
Description
Parallel gripper HGPT-80-A-B-G2 robust, with gripping force backup simult...-G2. Size = 80, Hub per jaws = 25 mm, Max. = ≤ 0.2 mm, Max. Exchange accuracy Jaws angle game ax, ay = ≤ 0.1 deg, Max. Jaws Game Sz = ≤ 0.02 mm
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
