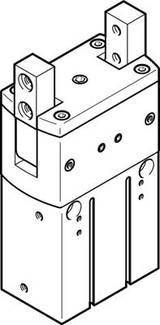

FESTO 563911 HGRT-32-A-G2 Radial gripper Enclosure material: Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 861.34 / piece)
€ 861.34
plus VAT.
14-day return policy included
Highlights & Details
Radial gripper HGRT-32-A-G2
Technical specifications
- No. of jaws: 2
- Size: 32
- Mounting type: Internal thread and centering sleeve
- Operating pressure: 4 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- All mounting positions permitted
- Operation: Double-acting
- Gripper function: Radial
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Constructive design: Forced motion sequence
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Mass moment of inertia: 5.03 kgcm2
- Max. Working frequency gripper:< = 3 Hz
- Max. Replacement accuracy< = 0.2 mm
- Max. Jaw angle play ax,ay:< = 0.1 deg
- Max. Static force on gripping jaws Fz 280 N.
- Max. Moment on gripping jaws My static: 13.5 Nm
- Max. Moment on gripping jaws Mz static: 1.3 Nm
- Max. Opening angle 180 degrees
- Min Opening time at 6 bar: 503 ms
- Min Closing time at 6 bar: 337 ms
- Relubrication interval guide elements: 10 million SP
- Pneumatic connection: M5
- Position detection: For proximity switches
- For inductive sensors
- Product weight: 1,90 g
- Rotation symmetry<: = 0.2 mm
- Ambient temperature: 5 ... 60 °C
- Material casing: Aluminum
- glideroxated
- Material gripping jaws: Steel
- hardened
- Material information: Free of copper and PTFE
- Complies with RoHS
- Repeat accuracy of gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Type
563911
- Product type
Radial gripper
- Enclosure material
Aluminium
- Connection
M5
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
563911
- Operating pressure (min.)
4 bar
- Accuracy (+/-)
0.02 mm
- Weight
940 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204508 FESTO 563911 HGRT-32-A-G2 Radial gripper Enclosure material: Aluminium 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
