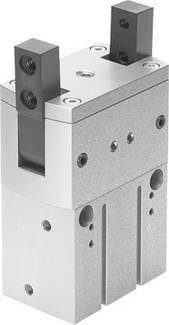

FESTO 563914 HGRT-50-A Radial gripper Enclosure material: Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1,352.10 / piece)
€ 1,352.10
plus VAT.
14-day return policy included
Highlights & Details
Radial gripper HGRT-50-A
Technical specifications
- No. of jaws: 2
- Size 50
- Mounting type: Internal thread and centering sleeve
- Operating pressure: 3 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- All mounting positions permitted
- Operation: Double-acting
- Open total gripping torque at 6 bar: 8,424 Ncm
- Close total gripping torque at 6 bar: 7,754 Ncm
- Gripper function: Radial
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Constructive design: Forced motion sequence
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Mass moment of inertia: 43.39 kgcm2
- Max. Working frequency gripper:< = 2 Hz
- Max. Replacement accuracy< = 0.2 mm
- Max. Jaw angle play ax,ay:< = 0.1 deg
- Max. Force at gripping jaws Fz static: 1,200 N.
- Max. Moment on gripping jaws My static: 35 Nm
- Max. Moment on gripping jaws Mz static: 10 Nm
- Max. Opening angle 180 degrees
- Min Opening time at 6 bar: 350 ms
- Min Closing time at 6 bar: 403 ms
- Relubrication interval guide elements: 10 million SP
- Pneumatic connection: g1/8
- Position detection: For proximity switches
- For inductive sensors
- Product weight: 3,100 g
- Rotation symmetry<: = 0.2 mm
- Ambient temperature: 5 ... 60 °C
- Material casing: Aluminum
- glideroxated
- Material gripping jaws: Steel
- hardened
- Material information: Free of copper and PTFE
- Complies with RoHS
- Repeat accuracy of gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Type
563914
- Product type
Radial gripper
- Enclosure material
Aluminium
- Connection
G 1/8
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
563914
- Operating pressure (min.)
3 bar
- Accuracy (+/-)
0.02 mm
- Weight
3100 g
- Medium
Compressed air
- Features
P port connector (G1/8)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204511 FESTO 563914 HGRT-50-A Radial gripper Enclosure material: Aluminium 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
