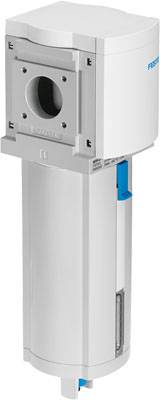

FESTO 564108 MS9-LF-G-CUM Line filter 20 bar 5 µm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details
MS9-LF-G-cum
Technical specifications
- Mounting type: cable installation, with accessories
- Material Filter: PE
- Size: 9
- Filter mesh: 5µm
- Material: aluminum wrought alloy shell
- Product type
Line filter
- Max. operating pressure
20 bar
- Material
Aluminium wrought alloy
- Material (filter)
PE
- Operating medium
Compressed air
- Manufacturer part #
564108
- Operating medium
Compressed Air
- Filter pore size
5 µm
- Size
9
- Operating pressure (min.)
0 bar
- Enclosure material
Aluminium (die-cast)
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Weight
2000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2121165 FESTO 564108 MS9-LF-G-CUM Line filter 20 bar 5 µm
User & Safety Instructions
User & Safety Instructions 2121165 FESTO 564108 MS9-LF-G-CUM Line filter 20 bar 5 µm
Description
Filter MS9-LF-G-cum 5µm filter, metal bowl, manual condensate drain, flow direction from left to right. Size=9, series = MS, mounting position = vertically +/-5°, filter mesh = 5 µm, condensate drain manual turning
