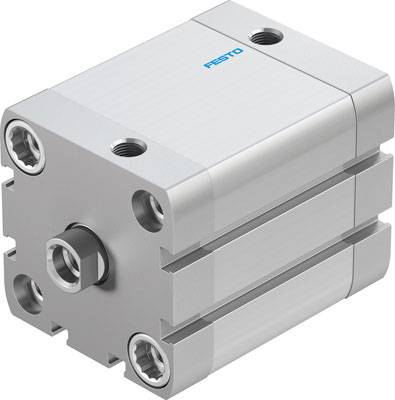

FESTO 572687 ADN-50-40-I-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Compact cylinder ADN-50-40-I-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
40 mm
- Max. operating pressure
10 bar
- Manufacturer part #
572687
- Type
Compact cylinder ADN -50-40-I-PPS-A self-adjusting pneumatic end position damping. Hub = 40 mm, piston diameter = 50 mm, Piston Rod Thread = M10, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
- Size
50
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
50 mm
- Force (max.)
1178 N
- Material
PPS
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
