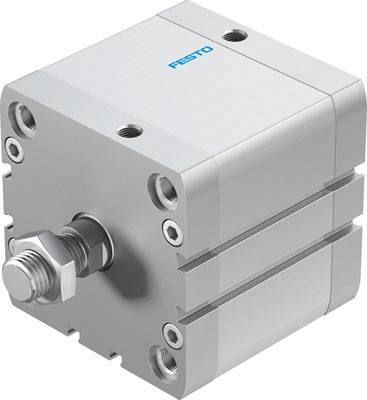

FESTO 572732 ADN-80-40-A-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
14-day return policy included
Highlights & Details
Compact cylinder ADN-80-40-A-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
40 mm
- Max. operating pressure
10 bar
- Manufacturer part #
572732
- Type
Compact cylinder ADN -80-40-A-PPS-A self-adjusting pneumatic end position damping. Hub = 40 mm, piston diameter = 80 mm, Piston Rod Thread = M16x1.5, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
80 mm
- Force (max.)
3016 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939842 FESTO 572732 ADN-80-40-A-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939842 FESTO 572732 ADN-80-40-A-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
