FESTO 577198 ADN-100-80-I-PPS-A Compact cylinder Stroke length: 80 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
14-day return policy included
Highlights & Details

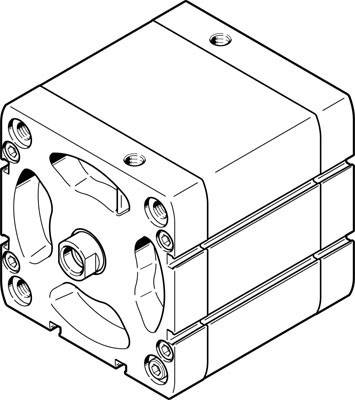

Compact cylinder ADN-100-80-I-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
80 mm
- Max. operating pressure
10 bar
- Manufacturer part #
577198
- Type
Compact cylinder ADN -100-80-I-PPS-A self-adjusting pneumatic end position damping. Hub = 80 mm, piston diameter = 100 mm, Piston Rod Thread = M12, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
100 mm
- Force (max.)
4712 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
