FESTO 577221 ADNGF-25-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details

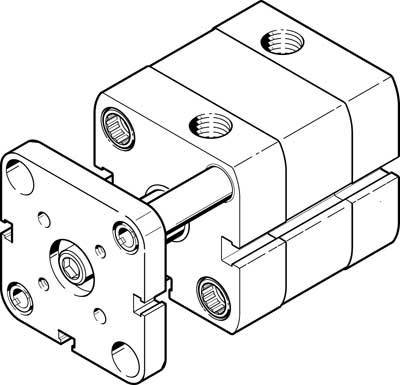

Compact cylinder ADNGF-25-40-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
40 mm
- Min. operating pressure
1.9 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: Aluminum
- Manufacturer part #
577221
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Weight
191 g
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston diameter
25 mm
- Piston rod material
Steel
- Force (max.)
295 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939952 FESTO 577221 ADNGF-25-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939952 FESTO 577221 ADNGF-25-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
