FESTO 577229 ADNGF-100-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
14-day return policy included
Highlights & Details

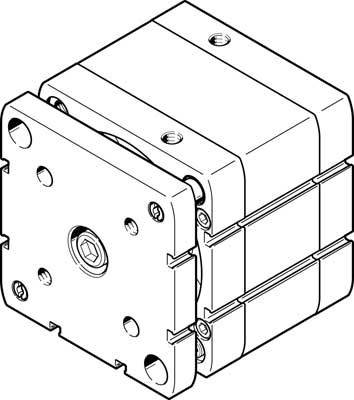

Compact cylinder ADNGF-100-40-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
40 mm
- Min. operating pressure
10 bar
- Max. operating pressure
1.4 bar
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
577229
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Weight
2673 g
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston diameter
100 mm
- Piston rod material
Steel
- Force (max.)
4712 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939959 FESTO 577229 ADNGF-100-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939959 FESTO 577229 ADNGF-100-40-PPS-A Compact cylinder Stroke length: 40 mm 1 pc(s)
