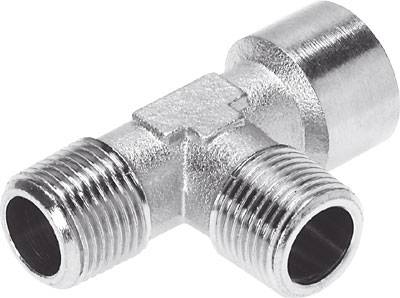

FESTO 8030260 T fastener 50 bar (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 3.02 / piece)
€ 30.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
T fastener
- Manufacturer part #
8030260
- Max. operating pressure
50 bar
- Pressure range
50 bar (max)
- Content
10 pc(s)
- No. of ports
2 x
- Material
Brass
- Material properties
nickel plated
- Features
P port connector (G1/4)
- Thread size
R1/4
G1/4"
- Min. operating pressure
-0.95 bar
- Max. ambient temperature
150 °C
- Min. ambient temperature
-20 °C
- Operating medium
Druckluft nach ISO8573-1:2010 [-:-:-]
Documents & Downloads
Datasheet
Datasheet 2866138 FESTO 8030260 T fastener 50 bar (max)
User & Safety Instructions
User & Safety Instructions 2866138 FESTO 8030260 T fastener 50 bar (max)
Description
T-screw connection NPFC-T-2R14-G14-MMF Material threaded screw connection=brass, nickel-plated, binder size=10, operating pressure=-0.95 - 50 bar, operating medium=compressed air according to ISO8573-1:2010 [-:-], corrosion resistance class KBK=1 - low corrosion stress
