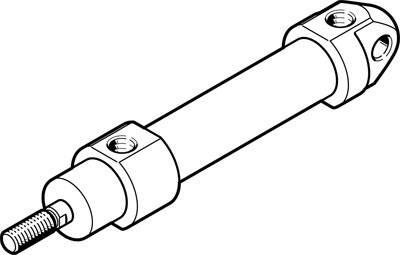

FESTO 8073975 CRDSNU-B-20-100-PPS-A-MG-A1 Standard cyclinder Stroke length: 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Pneumatic connection: G1/8
- All mounting positions permitted
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Standard cyclinder
- Stroke length
100 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Manufacturer part #
8073975
- Size
20
- Piston diameter
20 mm
- Standard
ISO 6432
- Max. ambient temperature
+80 °C
- Min. ambient temperature
0 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2125391 FESTO 8073975 CRDSNU-B-20-100-PPS-A-MG-A1 Standard cyclinder Stroke length: 100 mm 1 pc(s)
Description
Standard cylinder CRDSNU-B -20-100 - PPS-A-MG-A1 Hub = 100 mm, piston diameter = 20 mm, based on standard = ISO 6432, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
