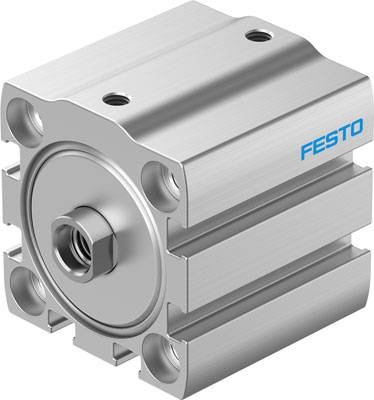

FESTO 8076376 ADN-S-32-25-I-P Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Compact cylinder
- Stroke length
25 mm
- Min. operating pressure
0.6 bar
- Max. operating pressure
10 bar
- (Ø)
32 mm
- Min. device temperature
0 °C
- Device temperature (max.)
60 °C
- Manufacturer part #
8076376
- Size
32
- Operating medium
Compressed air
- Sealant
NBR
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Steel (high alloyed)
- Force (max.)
483 N
- Material
Aluminium wrought alloy
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2800721 FESTO 8076376 ADN-S-32-25-I-P Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800721 FESTO 8076376 ADN-S-32-25-I-P Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 25 mm 1 pc(s)
Description
Compact cylinder ADN-S-32-25-I-P stroke=25 mm, piston diameter=32 mm, damping=P: Elastic damping rings/plates on both sides, installation position=random, function=double acting
