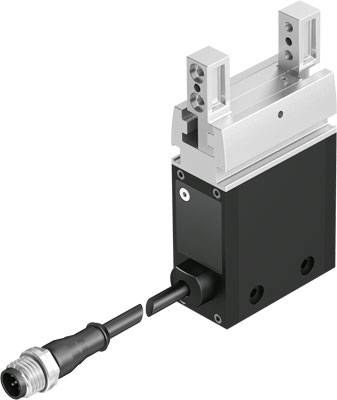

FESTO 8103809 EHPS-16-A-LK 2-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,449.58 / piece)
€ 1,449.58
plus VAT.
14-day return policy included
Technical specifications
- Product type
2-finger gripper
- Operating voltage
24 V
- Enclosure material
Aluminium wrought alloy
- Manufacturer part #
8103809
- Accuracy (+/-)
0.03 mm
- Weight
296 g
- Media temperature (range)
+5 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
+5 °C
IP40
- Max. ambient temperature
60 °C
- Min. ambient temperature
5 °C
- Standard
IEC 61010-1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2802153 FESTO 8103809 EHPS-16-A-LK 2-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2802153 FESTO 8103809 EHPS-16-A-LK 2-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Parallel gripper EHPS-16-A-LK size=16, stroke per jaws=10 mm, max. Interchange accuracy=<= 0.2 mm, Max. Jaw angle play max,ay=0.4 deg, Max. Jaw play SZ=0.05 mm
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
