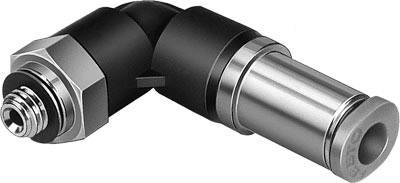

FESTO 90 degree screw fastener QSKL-M5-6 153295 -0.95 up to 14 bar External thread M5
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
90 degree screw fastener QSKL-M5-6
Technical specifications
- Oiled operation possible
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
90 degree screw fastener
- External thread
M5
- Operating temperature
-10 up to 80 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
80 °C
- Manufacturer part #
153295
- Material (details)
PBT
- Max. operating pressure
14 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 14 bar
Documents & Downloads
Datasheet
Datasheet 1894638 FESTO 90 degree screw fastener QSKL-M5-6 153295 -0.95 up to 14 bar External thread M5
User & Safety Instructions
User & Safety Instructions 1894638 FESTO 90 degree screw fastener QSKL-M5-6 153295 -0.95 up to 14 bar External thread M5
Information
Information 1894638 FESTO 90 degree screw fastener QSKL-M5-6 153295 -0.95 up to 14 bar External thread M5
