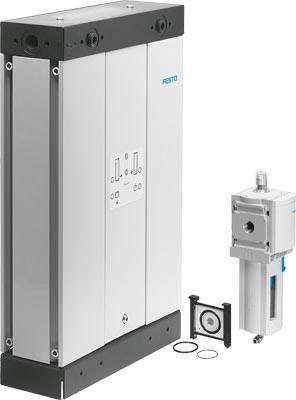

FESTO Adsorption dryer PDAD-13-G3/8 552171 G 3/8 Enclosure material Aluminium wrought alloy
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,189.08 / piece)
€ 3,189.08
plus VAT.
14-day return policy included
Highlights & Details
Adsorption dryer PDAD-13-G3/8
Technical specifications
- Adsorption Dryers PDAD-13-G3/8 for dry and clean compressed air. Installation position = (* vertically, * horizontal), Design = cold regenerating adsorption dryers, input pressure 1 = 4 - 16 bar, note for the operating and control medium = oiled operation is not possible
- Operating medium
According to ISO 8573-1:2010 compressed air [6:4:4]
- Type
552171
- Product type
Adsorption dryer
- Enclosure material
Aluminium wrought alloy
- Connection
G 3/8
- Max. operating pressure
16 bar
- Manufacturer part #
552171
- Operating pressure (min.)
4 bar
- Weight
14000 g
- Material
Aluminium wrought alloy
- Medium
Compressed air
- Max. ambient temperature
+50 °C
- Min. ambient temperature
+2 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1935450 FESTO Adsorption dryer PDAD-13-G3/8 552171 G 3/8 Enclosure material Aluminium wrought alloy
User & Safety Instructions
User & Safety Instructions 1935450 FESTO Adsorption dryer PDAD-13-G3/8 552171 G 3/8 Enclosure material Aluminium wrought alloy
Description
Close offers advantages: Who compressed air decentralised dries, saves costs, optimizes the process reliability and extends the service life of the components and minimizes maintenance costs. The best example:
The compact adsorption dryers PDAD with fixed defined pressure dew point of -40°C or -70°C is suitable for high pressure air classes.
Save costs
Through targeted and decentralised drying directly at the consumer is only the actual need for dryer air. This saves energy costs and prevents corrosion, so that the components for longer life.
Reduced service costs
The easy to change cartridge makes the granules exchange a child's play. And to make sure that a constant air quality is guaranteed. Additional plus: less maintenance,
Because of the integrated after filter incurred abrasion of the desiccant holding back.
Flexible in installation
Space-optimized and can be installed out of sight because of the filter is integrated.
User friendly
At a glance: The service function with the display. More clarity integrated, because drying cycles and maintenance can be displayed.
This text is machine translated.
The compact adsorption dryers PDAD with fixed defined pressure dew point of -40°C or -70°C is suitable for high pressure air classes.
Save costs
Through targeted and decentralised drying directly at the consumer is only the actual need for dryer air. This saves energy costs and prevents corrosion, so that the components for longer life.
Reduced service costs
The easy to change cartridge makes the granules exchange a child's play. And to make sure that a constant air quality is guaranteed. Additional plus: less maintenance,
Because of the integrated after filter incurred abrasion of the desiccant holding back.
Flexible in installation
Space-optimized and can be installed out of sight because of the filter is integrated.
User friendly
At a glance: The service function with the display. More clarity integrated, because drying cycles and maintenance can be displayed.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
