Buy FESTO Air hose 160552 PAN-V0-10X1,25-SW PVC-P, Polyamide 12 Black Inside diameter: 7.5 mm 12 bar 50 m

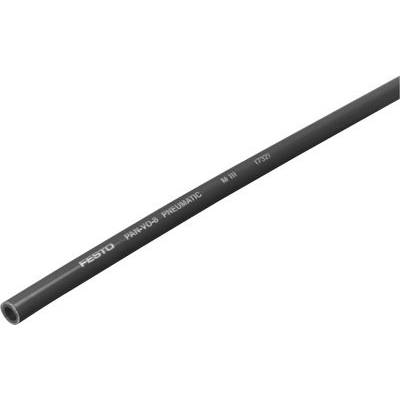

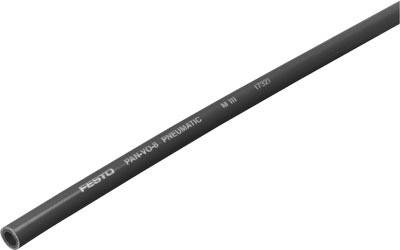

'Black pneumatic hose by Festo with label PAV-6-4 PNEUMATIC MADE IN GERMANY.'

Image similar

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (1 m = € 10.57)

€ 528.57

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Air hose PAN-V0-10X1,25-SW

Technical specifications

Black

Factory colour: Black

Manufacturer part #: 160552

Content: 50 m

Length: 50 m

Inside diameter: 7.5 mm

Material: PVC-P
Polyamide 12

Operating medium: Fluids
Water
ISO 8573-1:2010 [7:-:-] compliance

Bend radius (min.): 34 mm

Outside Ø: 12 mm

Max. operating pressure: 12 bar

Min. operating pressure: -0.95 bar

Max. temperature: +90 °C

Min. temperature: -30 °C

Product type: Air hose

Variants(All information is without VAT, plus shipping costs)

Operating medium

Material

Factory colour

Max. operating pressure

Content

Max. temperature

Inside diameter

Outside Ø

FESTO Air hose 160552 PAN-V0-10X1,25-SW PVC-P, Polyamide 12 Black Inside diameter: 7.5 mm 12 bar 50 m

Item no:1968686

This article

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

Black

12 bar

50 m

+90 °C

7.5 mm

12 mm

FESTO Air hose 132899 PAN-V0-4X0,75-BL PVC-P, Polyamide Blue Inside diameter: 2.5 mm 12 bar 50 m

Item no:1894515

WaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide

Blue

12 bar

50 m

+90 °C

2.5 mm

6 mm

FESTO Air hose 132906 PAN-V0-8X1-BL PVC-P, Polyamide Blue Inside diameter: 6 mm 12 bar 50 m

Item no:1894854

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide

Blue

12 bar

50 m

+90 °C

6 mm

10 mm

FESTO Air hose 132907 PAN-V0-10X1,25-BL PVC-P, Polyamide Blue Inside diameter: 7.5 mm 12 bar 50 m

Item no:1895170

ISO 8573-1:2010 [7:-:-] complianceMineral oil

PVC-PPolyamide

Blue

12 bar

50 m

+90 °C

7.5 mm

12 mm

FESTO Air hose 132905 PAN-V0-6X1-BL PVC-P, Polyamide Blue Inside diameter: 4 mm 12 bar 50 m

Item no:1896405

WaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide

Blue

12 bar

50 m

+90 °C

4 mm

8 mm

FESTO Air hose 525472 PAN-V0-10X1,25-GN PVC-P, Polyamide 12 Red Inside diameter: 7.5 mm -0.95 bar 20 m

Item no:1968302

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

Red

-0.95 bar

20 m

7.5 mm

12 mm

FESTO Air hose 525485 PAN-V0-12X1,5-GE PVC-P, Polyamide 12 Yellow Inside diameter: 9 mm 12 bar 20 m

Item no:1968366

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

Yellow

12 bar

20 m

+90 °C

9 mm

14 mm

FESTO Air hose 525483 PAN-V0-8X1-GE PVC-P, Polyamide 12 Yellow Inside diameter: 6 mm 12 bar 20 m

Item no:1968367

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

Yellow

12 bar

20 m

+90 °C

6 mm

10 mm

FESTO Air hose 525481 PAN-V0-12X1,5-WS PVC-P, Polyamide 12 White Inside diameter: 9 mm 12 bar 20 m

Item no:1968498

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

White

12 bar

20 m

+90 °C

9 mm

14 mm

FESTO Air hose 525480 PAN-V0-10X1,25-WS PVC-P, Polyamide 12 White Inside diameter: 7.5 mm 12 bar 20 m

Item no:1968558

FluidsWaterISO 8573-1:2010 [7:-:-] compliance

PVC-PPolyamide 12

White

12 bar

20 m

+90 °C

7.5 mm

12 mm
