Buy FESTO Air hose 178419 PUN-8X1,25-GE TPU Yellow Inside diameter: 5.7 mm 10 bar 50 m

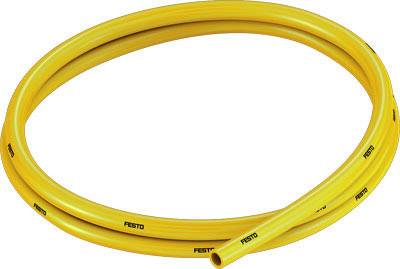

A yellow plastic tube formed into a circle. The tube is printed multiple times with the word 'FESTO'.

Image similar

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (1 m = € 2.18)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Air hose PUN-8X1,25-GE

Technical specifications

Yellow

Factory colour: Yellow

Manufacturer part #: 178419

Content: 50 m

Length: 50 m

Inside diameter: 5.7 mm

Material: TPU

Operating medium: ISO 8573-1:2010 [7:-:-] compliance

Bend radius (min.): 24 mm

Outside Ø: 8 mm

Max. operating pressure: 10 bar

Min. operating pressure: -0.95 bar

Max. temperature: +60 °C

Min. temperature: -35 °C

UKCA: not relevant

Product type: Air hose

Variants(All information is without VAT, plus shipping costs)

Operating medium

Material

Factory colour

Max. operating pressure

Content

Max. temperature

Inside diameter

Outside Ø

FESTO Air hose 152584 PUN-4X0,75-SI Polyurethane Silver Inside diameter: 2.6 mm 10 bar 50 m

Item no:1894601

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

2.6 mm

4 mm

FESTO Air hose 152583-50 PUN-3X0,5-SI Polyurethane Silver Inside diameter: 2.1 mm 10 bar 50 m

Item no:1895841

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

2.1 mm

3 mm

FESTO Air hose 152586 PUN-6X1-SI Polyurethane Silver Inside diameter: 4 mm 10 bar 50 m

Item no:1896523

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

4 mm

6 mm

FESTO Air hose 152588-50 PUN-10X1,5-SI Polyurethane Silver Inside diameter: 7 mm 10 bar 50 m

Item no:1910474

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

7 mm

10 mm

FESTO Air hose 152589 PUN-12X2-SI Polyurethane Silver Inside diameter: 8 mm 10 bar 50 m

Item no:1910475

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

8 mm

12 mm

FESTO Air hose 152587-50 PUN-8X1,25-SI Polyurethane Silver Inside diameter: 5.7 mm 10 bar 50 m

Item no:1910478

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

5.7 mm

8 mm

FESTO Air hose 152590 PUN-16X2,5-SI Polyurethane Silver Inside diameter: 11 mm 10 bar 50 m

Item no:1910480

ISO 8573-1:2010 [7:-:-] compliance

Polyurethane

Silver

10 bar

50 m

+60 °C

11 mm

16 mm

FESTO Air hose 159664 PUN-6X1-BL TPU Blue Inside diameter: 4 mm 10 bar 50 m

Item no:1968317

ISO 8573-1:2010 [7:-:-] compliance

TPU

Blue

10 bar

50 m

+60 °C

4 mm

6 mm

FESTO Air hose 152822 PUN-4X0,75-DUO-SI TPU Silver Inside diameter: 2.6 mm 10 bar 50 m

Item no:1968453

ISO 8573-1:2010 [7:-:-] compliance

TPU

Silver

10 bar

50 m

+60 °C

2.6 mm

4 mm

FESTO Air hose 152824 PUN-8X1,25-DUO-SI TPU Silver Inside diameter: 5.7 mm 10 bar 50 m

Item no:1968462

ISO 8573-1:2010 [7:-:-] compliance

TPU

Silver

10 bar

50 m

+60 °C

5.7 mm

8 mm
