Buy FESTO Air hose 8048671-50 PUN-H-4X0,75-TBL Thermoplastic elastomer Translucent, Blue Inside diameter: 2.6 mm 10 bar 50 m

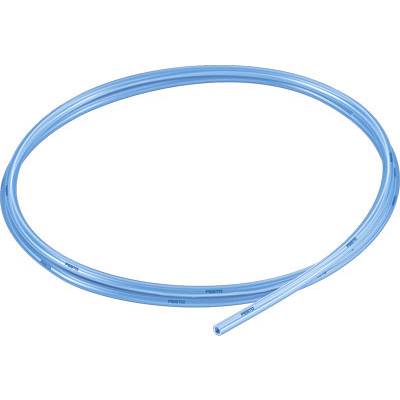

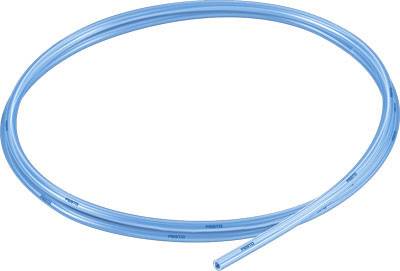

A blue, flexible plastic hose arranged in a circular configuration, suitable for transporting liquids or gases.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number

Set(s)

Total (1 m = € 0.82)

€ 41.17

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Air hose PUN-H-4X0,75-TBL

Technical specifications

Translucent;Blue
Copper and PTFE-free

Factory colour: Translucent
Blue

Manufacturer part #: 8048671-50

Content: 50 m

Inside diameter: 2.6 mm

Material: Thermoplastic elastomer

Operating medium: Water

Bend radius (min.): 8 mm

Outside Ø: 4 mm

Max. operating pressure: 10 bar

Min. operating pressure: 0.95 bar

Max. temperature: 60 °C

Min. temperature: -35 °C

Product type: Air hose

Variants(All information is without VAT, plus shipping costs)

Operating medium

Material

Factory colour

Max. operating pressure

Content

Max. temperature

Inside diameter

Outside Ø

FESTO Air hose 197375-50 PUN-H-3X0,5-NT Thermoplastic elastomer Ecru Inside diameter: 2.1 mm 10 bar 50 m

Item no:1893556

Water

Thermoplastic elastomer

Ecru

10 bar

50 m

60 °C

2.1 mm

3 mm

FESTO Air hose 197376-50 PUN-H-4X0,75-NT Thermoplastic elastomer Ecru Inside diameter: 2.6 mm 10 bar 50 m

Item no:1893557

Water

Thermoplastic elastomer

Ecru

10 bar

50 m

60 °C

2.6 mm

4 mm

FESTO Air hose 197377-50 PUN-H-6X1-NT Thermoplastic elastomer Ecru Inside diameter: 4 mm 10 bar 50 m

Item no:1893558

WaterISO 8573-1:2010 [7:-:-] compliance

Thermoplastic elastomer

Ecru

10 bar

50 m

60 °C

4 mm

6 mm

FESTO Air hose 197378-50 PUN-H-8X1,25-NT Thermoplastic elastomer Ecru Inside diameter: 5.7 mm 10 bar 50 m

Item no:1893559

WaterISO 8573-1:2010 [7:-:-] compliance

Thermoplastic elastomer

Ecru

10 bar

50 m

60 °C

5.7 mm

8 mm

FESTO Air hose 197380-50 PUN-H-12X2-NT Thermoplastic elastomer Ecru Inside diameter: 8 mm 10 bar 50 m

Item no:1893561

Water

Thermoplastic elastomer

Ecru

10 bar

50 m

60 °C

8 mm

12 mm

FESTO Air hose 197382-50 PUN-H-3X0,5-BL Thermoplastic elastomer Blue Inside diameter: 2.1 mm 10 bar 50 m

Item no:1893562

Water

Thermoplastic elastomer

Blue

10 bar

50 m

60 °C

2.1 mm

3 mm

FESTO Air hose 197383-50 PUN-H-4X0,75-BL Thermoplastic elastomer Blue Inside diameter: 2.6 mm 10 bar 50 m

Item no:1893563

Water

Thermoplastic elastomer

Blue

10 bar

50 m

60 °C

2.6 mm

4 mm

FESTO Air hose 197384-50 PUN-H-6X1-BL Thermoplastic elastomer Translucent, Blue Inside diameter: 4 mm 10 bar 50 m

Item no:1893564

WaterISO 8573-1:2010 [7:-:-] compliance

Thermoplastic elastomer

TranslucentBlue

10 bar

50 m

60 °C

4 mm

6 mm

FESTO Air hose 197385-50 PUN-H-8X1,25-BL Thermoplastic elastomer Blue Inside diameter: 5.7 mm 10 bar 50 m

Item no:1893565

WaterISO 8573-1:2010 [7:-:-] compliance

Thermoplastic elastomer

Blue

10 bar

50 m

60 °C

5.7 mm

8 mm

FESTO Air hose 197386-50 PUN-H-10X1,5-BL Thermoplastic elastomer Blue Inside diameter: 7 mm 10 bar 50 m

Item no:1893566

Water

Thermoplastic elastomer

Blue

10 bar

50 m

60 °C

7 mm

10 mm
