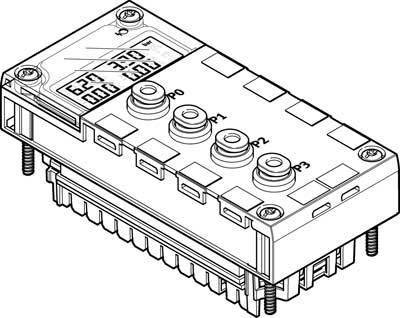

FESTO Analog module CPX-4AE-P-B2 560361 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 516.81 / piece)
€ 516.81
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: (Incl. linking block)
- 50 mm x 107 mm x 55 mm
- Number of inputs: 4
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- Operating voltage range DC: 18 ... 30 V
- Representable unit(s): KPa
- mbar
- psi
- Data format: 15 bits + sign
- Binary representation in mbar, kPa, psi
- Diagnostics: Limit violation per channel
- Parameter assignment error
- Sensor limit per channel
- Pressure measuring range initial value: -1 bar
- Pressure measuring range End value: 1 bar
- Internal power consumption at operating voltage: Type. 50 mA
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Internal cycle time: 5 ms
- Corrosion resistance class KBK: 1 - low corrosion stress
- (When installed)
- Storage temperature: -20 ... 70 °C
- LED displays: 1 group diagnostics
- Medium temperature: 0 ... 50 °C
- Measured variable: 4x relative pressure / 2x differential pressure
- Nominal operating voltage DC 24 V.
- Parameterization: Diagnostic delay per channel
- Hysteresis per module
- Unit of measure
- Measured value smoothing per channel
- Diagnostics limit value monitoring per channel
- Diagnostics sensor limit per channel
- Measurement of relative/differential pressure
- Pneumatic connection: QS-4
- IP65 rating
- IP67
- Ambient temperature: -5 ... 50 °C
- Material housing: PA-reinforced
- PC
- Material note: RoHS compliant
- Product type
Analog module
- Medium
Compressed air
- Operating medium
Compressed Air
- Operating temperature
-5 °C (min)
- Media temperature (range)
0 up to 50 °C
- Manufacturer part #
560361
- Dim
(L x W x H) 107 x 50 x 50 mm
- No. of digital inputs
4
- Min. operating temperature
-5 °C
- Material
PA
- Max. media temperature
50 °C
- Media temperature (min.)
0 °C
- Width
50 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- Height
50 mm
- Length
107 mm
- Connection
QS-4
- Operating voltage
24 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204489 FESTO Analog module CPX-4AE-P-B2 560361 1 pc(s)
Description
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
