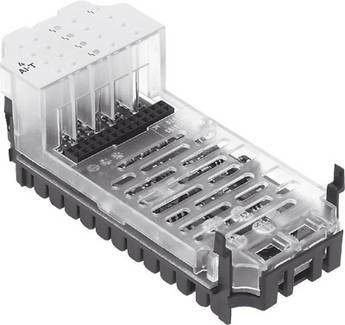

FESTO Analog module CPX-4AE-T 541486 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: (Incl. connection block and connection technology)
- 50 mm x 107 mm x 50 mm
- Fuse (short circuit): Internal electronic fuse
- Number of inputs: 4
- Operating voltage range DC: 18 ... 30 V
- Data format: 15 bits + sign
- Binary representation in tenths of a degree
- Diagnostics: Wire break per channel
- Limit violation per channel
- Input signal short circuit
- Parameter assignment error
- Internal power consumption at operating voltage: Type. 50 mA
- Operating error limit in relation to ambient temperature range: +/- 0.6 %
- Basic error limit at 25 °C: +/- 0.6 K for Pt sensors
- Internal cycle time: 250 ms
- Corrosion resistance class KBK: 1 - low corrosion stress
- (When installed)
- Storage temperature: -20 ... 70 °C
- LED displays: 1 group diagnostics
- 4 Channel diagnostics
- Max. Cable length 200 m
- Shielded
- Nominal operating voltage DC 24 V.
- Parameterization: Forcing per channel
- Limit value monitoring/channel
- Unit of measure
- Measurement smoothing
- Sensor type per channel
- Monitoring wire break/channel
- Potential separation channel - internal bus: Yes
- Potential separation channel - channel: No.
- Protection type: Depending on the terminal block
- NI 100 sensor type
- NI 1000
- NI 120
- NI 500
- Pt 100
- Pt 1000
- PT 200
- PT 500
- Ambient temperature: -5 ... 50 °C
- Material housing: PA-reinforced
- PC
- Repeatability 0.05% at 25 °C.
- Product type
Analog module
- Operating temperature
-5 °C (min)
- Manufacturer part #
541486
- Dim
(L x W x H) 107 x 50 x 50 mm
- URDM
24 V DC
- Min. operating temperature
-5 °C
- Weight
95 g
- Material
PC
- Width
50 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- Height
50 mm
- Length
107 mm
- Operating voltage
24 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204411 FESTO Analog module CPX-4AE-T 541486 1 pc(s)
