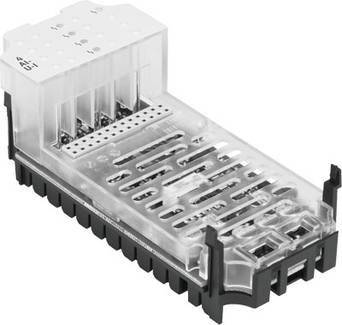

FESTO Analogue module CPX-4AE-U-I 573710 24 V Enclosure material PC
EAN:
Part number:
Item no:
Number
Total (€ 449.58 / piece)
€ 449.58
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: (Incl. connection block and connection technology)
- 50 mm x 107 mm x 50 mm
- Fuse (short circuit): Internal electronic fuse
- Number of inputs: 4
- Operating voltage range DC: 18 ... 30 V
- Data format: 15 bits + sign
- scales to 15 bits
- Diagnostics: Wire break per channel
- Limit violation per channel
- Parameter assignment error
- Overflow/underflow
- Overload input
- Sensor supply short circuit
- Internal power consumption at operating voltage: Type. 50 mA
- Operating error limit in relation to ambient temperature range: +/- 0.3 %
- Basic error limit at 25 °C: +/- 0.2 %
- Internal cycle time: 500 µs
- Corrosion resistance class KBK: 1 - low corrosion stress
- (When installed)
- Storage temperature: -20 ... 70 °C
- LED displays: 1 group diagnostics
- 4 Channel diagnostics
- Max. Cable length 30 m.
- Shielded
- Nominal operating voltage DC 24 V.
- Rated operating voltage DC load voltage: 24V +/- 2%
- Parameterization: Data format
- Force per channel
- Limit value monitoring/channel
- Measurement smoothing
- Sensor supply active
- Signal range per channel
- Short circuit behavior
- Behavior after overload input
- Monitoring wire break/channel
- Potential separation channel - internal bus: Yes, without using the internal sensor supply
- Potential separation channel - channel: No.
- Product weight: 46 g
- Protection type: Depending on the terminal block
- Sensor type: +/- 10V
- +/- 20mA
- +/- 5V
- (0 - 10 V)
- 0 - 20 mA
- 1-5 V
- 4 -20 mA
- Ambient temperature: -5 ... 50 °C
- Material housing: PA-reinforced
- PC
- Material note: RoHS compliant
- Repeatability 0.1% at 25 °C.
- Product type
Analogue module
- Operating voltage
24 V
- Enclosure material
PC
- Operating temperature
-5 °C (min)
- Min. operating temperature
-5 °C
- Manufacturer part #
573710
- Weight
46 g
- Height
50 mm
- Length
107 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204542 FESTO Analogue module CPX-4AE-U-I 573710 24 V Enclosure material PC
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
