FESTO Bellow cylinder 36490 EB-145-100 Enclosure material: Steel (galvanized) Stroke length: 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
14-day return policy included
Highlights & Details

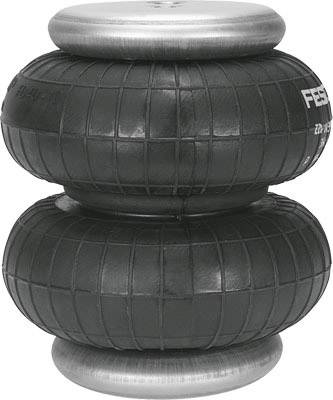

Bellow cylinder EB-145-100
Technical specifications
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-: 4]
- Product type
Bellow cylinder
- Stroke length
100 mm
- Max. operating pressure
8 bar
- Manufacturer part #
36490
- Weight
1100 g
- Size
145
- Min. operating pressure
0 bar
- Pneumatics connector
G1/8"
- Enclosure material
Steel (galvanized)
- Force (max.)
200 N
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- Operating principle
Single-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1894455 FESTO Bellow cylinder 36490 EB-145-100 Enclosure material: Steel (galvanized) Stroke length: 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1894455 FESTO Bellow cylinder 36490 EB-145-100 Enclosure material: Steel (galvanized) Stroke length: 100 mm 1 pc(s)
Information
Information 1894455 FESTO Bellow cylinder 36490 EB-145-100 Enclosure material: Steel (galvanized) Stroke length: 100 mm 1 pc(s)
