FESTO Bernoulli grip OGGB-100-G18-2-Q 574566
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 360.50 / piece)
€ 360.50
plus VAT.
14-day return policy included
Highlights & Details

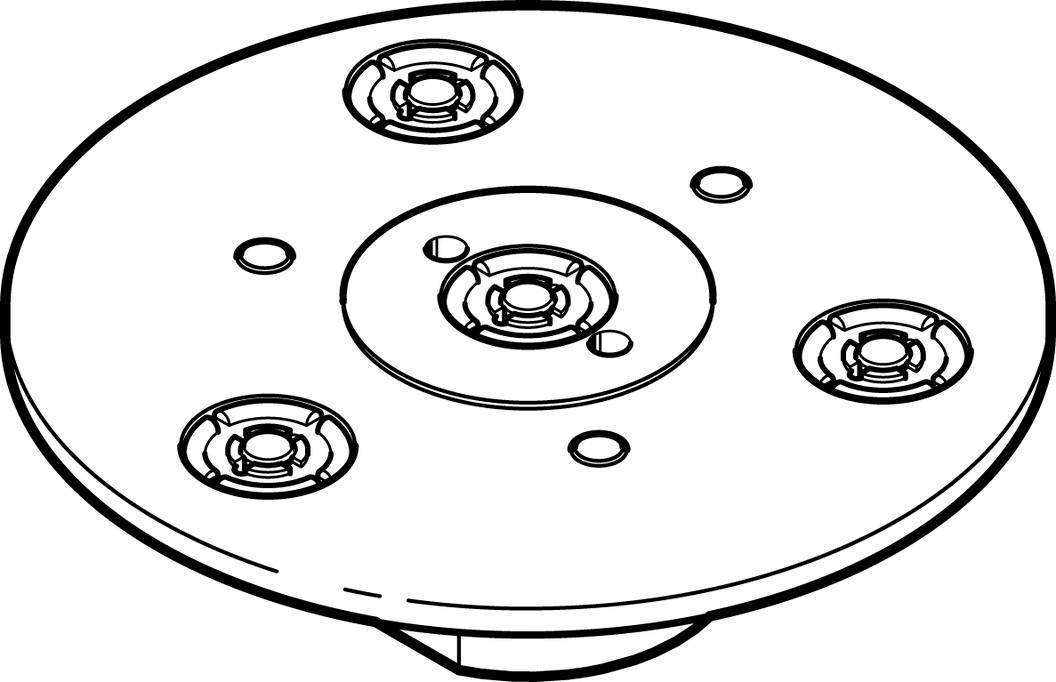

Bernoulli grip OGGB-100-G18-2-Q
Technical specifications
- Bernoulli grippers OGGB-100-G 18-2-Q for the transport of thin, extremely sensitive and brittle materials, suitable for high lateral forces. Mounting position: any; connection location: above/lateral; Gripper Diameter: 100 mm, operating pressure: 0 - 6 bar; rated operating pressure 1 bar
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Bernoulli grip
- Type
Material Housing: aluminum wrought alloy
- Manufacturer part #
574566
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1936246 FESTO Bernoulli grip OGGB-100-G18-2-Q 574566
User & Safety Instructions
User & Safety Instructions 1936246 FESTO Bernoulli grip OGGB-100-G18-2-Q 574566
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
