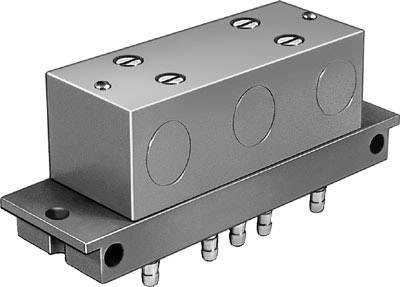

FESTO Block 4204 ZK-PK-3-6/3 1.6 up to 8 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details
ZK-PK-3-6/3
Technical specifications
- Normal nominal flow rate: 100 l/min
- Nominal width: 2.5 mm
- Ambient temperature: -10 °C to +60 °C
- Material Seals: NBR
- Mounting type: Front Panel
- Product weight: 85g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Block
- Min. display range
1.6 bar
- Display range (max.)
8 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
4204
- Material (details)
POM
- Connection
PK-3
- Max. operating pressure
8 bar
- Operating pressure (min.)
1.6 bar
- Pressure range
1.6 up to 8 bar
- Operating medium
Compressed air
- Pipe Ø
2.5 mm
- Nominal width
2.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2115192 FESTO Block 4204 ZK-PK-3-6/3 1.6 up to 8 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2115192 FESTO Block 4204 ZK-PK-3-6/3 1.6 up to 8 bar 1 pc(s)
Information
Information 2115192 FESTO Block 4204 ZK-PK-3-6/3 1.6 up to 8 bar 1 pc(s)
Description
And Block ZK-PK-3-6/3 Valve Function = AND function, pneumatic connection 1 = PK-3, pneumatic connection 2 = PK-3, mounting type = the front panel installation, normal rated flow = 100 l/min
