FESTO Cable with socket 151688 KMEB-1-24-2,5-LED Number of pins: 3 24 V (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details

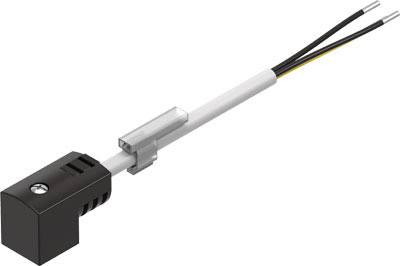

Cable with socket KMEB-1-24-2,5-LED
Technical specifications
- cable diameter 5.2 mm
- Product type
Cable with socket
- Max. operating voltage
24 V
- Manufacturer part #
151688
- Operating voltage
24 V (max)
- Weight
125 g
- Material (details)
PVC, PA66-GF30
- Number of pins
3
- Number of contacts (details)
3
- Length
2.5 m
IP65
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1893300 FESTO Cable with socket 151688 KMEB-1-24-2,5-LED Number of pins: 3 24 V (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1893300 FESTO Cable with socket 151688 KMEB-1-24-2,5-LED Number of pins: 3 24 V (max) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
