FESTO Check-choke valve 151175 GRLA-1/4-RS-B 0.3 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Highlights & Details

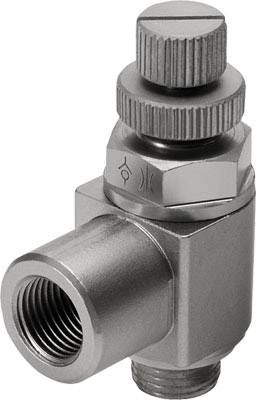

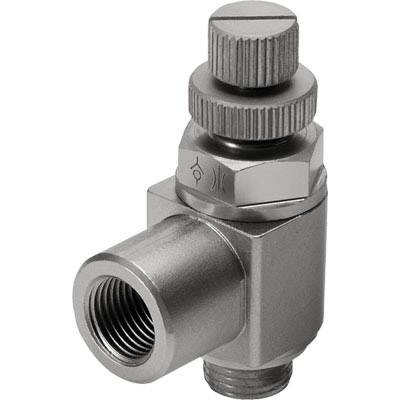

Check-choke valve GRLA-1/4-RS-B
Technical specifications
- Ambient temperature: -10 °C to 60 °C, product weight: 59 g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Check-choke valve
- Min. display range
0.3 bar
- Display range (max.)
10 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
151175
- Material (details)
Seals: NBR.
- Connection
G1/4"
- Max. operating pressure
10 bar
- Operating pressure (min.)
0.3 bar
- Pressure range
0.3 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1895830 FESTO Check-choke valve 151175 GRLA-1/4-RS-B 0.3 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1895830 FESTO Check-choke valve 151175 GRLA-1/4-RS-B 0.3 up to 10 bar 1 pc(s)
Information
Information 1895830 FESTO Check-choke valve 151175 GRLA-1/4-RS-B 0.3 up to 10 bar 1 pc(s)
