FESTO Check-choke valve 2103 GR-3/4 0.3 up to 15 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 415.97 / piece)
€ 415.97
plus VAT.
14-day return policy included
Highlights & Details

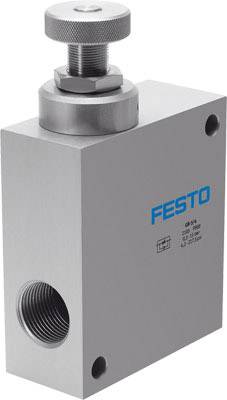

Check-choke valve GR-3/4
Technical specifications
- Ambient temperature: -10 °C to 60 °C, product weight: 938 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Check-choke valve
- Min. display range
0.3 bar
- Display range (max.)
15 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
2103
- Material (details)
Housing: aluminum wrought alloy
- Connection
G3/4
- Max. operating pressure
15 bar
- Operating pressure (min.)
0.3 bar
- Pressure range
0.3 up to 15 bar
- Operating medium
Compressed air
- UKCA
not relevant
