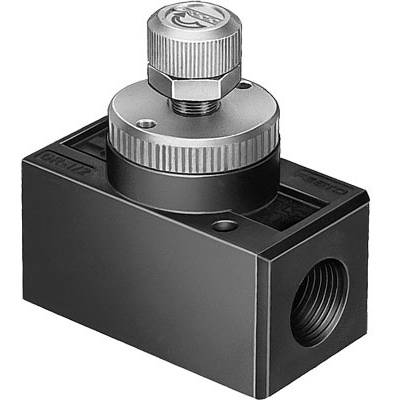

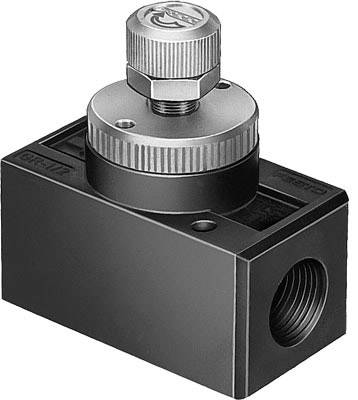

FESTO Check-choke valve 3720 GR-1/2 0.1 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Check-choke valve GR-1/2
Technical specifications
- Ambient temperature -20°C-75°C
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Check-choke valve
- Min. display range
0.1 bar
- Display range (max.)
10 bar
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Manufacturer part #
3720
- Material (details)
Body: Zinc die-cast
- Connection
G1/2
- Max. operating pressure
10 bar
- Operating pressure (min.)
0.1 bar
- Pressure range
0.1 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1895182 FESTO Check-choke valve 3720 GR-1/2 0.1 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1895182 FESTO Check-choke valve 3720 GR-1/2 0.1 up to 10 bar 1 pc(s)
Information
Information 1895182 FESTO Check-choke valve 3720 GR-1/2 0.1 up to 10 bar 1 pc(s)
