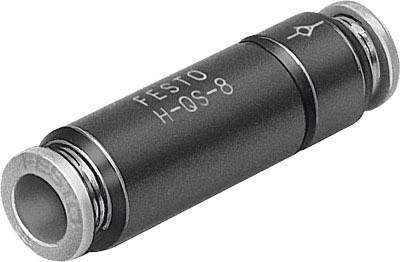

FESTO Check valve 153464 H-QS-8 Enclosure material Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Check valve H-QS-8
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Check valve
- Enclosure material
Aluminium
- Connection
QS-8
- Max. flow
681 l/min
- Max. operating pressure
10 bar
- Manufacturer part #
153464
- Operating pressure (min.)
-1 bar
- Weight
21 g
- Medium
Compressed air
- QNn value
681 l/min
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894548 FESTO Check valve 153464 H-QS-8 Enclosure material Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1894548 FESTO Check valve 153464 H-QS-8 Enclosure material Aluminium 1 pc(s)
Information
Information 1894548 FESTO Check valve 153464 H-QS-8 Enclosure material Aluminium 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
