FESTO Check valve 153470 HE-2-QS-12 -0.95 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 7 Piece(s) available
Highlights & Details

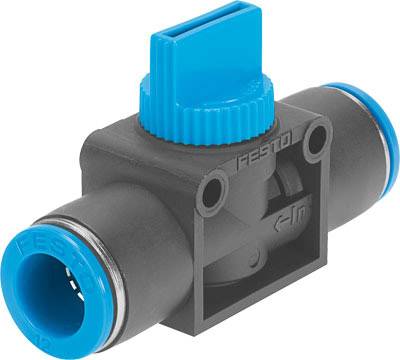

Check valve HE-2-QS-12
Technical specifications
- Nominal width: 7 mm, Product Weight: 50g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Check valve
- Type
Operating method: manual
- Operating temperature
0 up to +60 °C
- Min. operating temperature
0 °C
- Max. operating temperature
+60 °C
- Manufacturer part #
153470
- Material (details)
PBT reinforced
- Connection
QS-12
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
