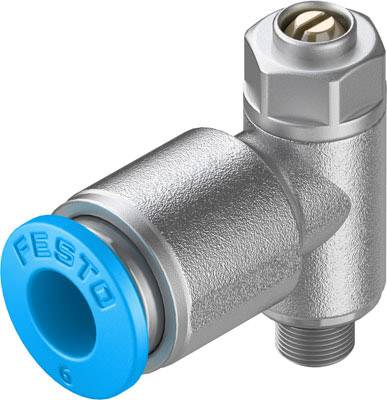

FESTO Check valve 193139 GRLA-M5-QS-6-D 0.2 up to 10 bar External thread M5 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
Check valve GRLA-M5-QS-6-D
Technical specifications
- Copper and PTFE-free, RoHS Compliant
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Check valve
- External thread
M5
- Min. display range
0.2 bar
- Display range (max.)
10 bar
- Operating temperature
-10 up to 60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
60 °C
- Manufacturer part #
193139
- Material (details)
NBR
- Connection
M5, QS-6
- Max. operating pressure
10 bar
- Operating pressure (min.)
0.2 bar
- Pressure range
0.2 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1893545 FESTO Check valve 193139 GRLA-M5-QS-6-D 0.2 up to 10 bar External thread M5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1893545 FESTO Check valve 193139 GRLA-M5-QS-6-D 0.2 up to 10 bar External thread M5 1 pc(s)
