FESTO Connector 2142 KD3-1/8-A External thread: 1/8" Pipe diameter: 4.95 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details

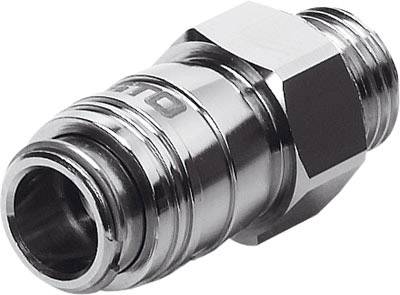

Connector KD3-1/8-A
Technical specifications
- Oiled operation possible
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Connector
- Pipe Ø
4.95 mm
- External thread
1/8"
- Manufacturer part #
2142
- Vacuum
-0.95 bar
- Max. operating pressure
12 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO 8573-1:2010 [7:-:-]. Geölter Betrieb möglich
- Material properties
anti-corrosive
- Features
P port connector (G1/8)
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
