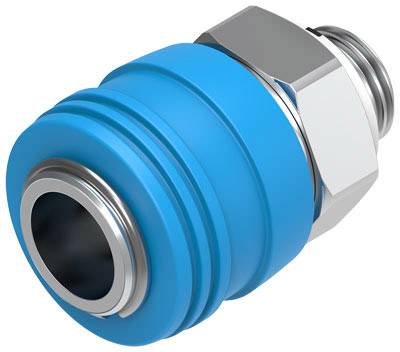

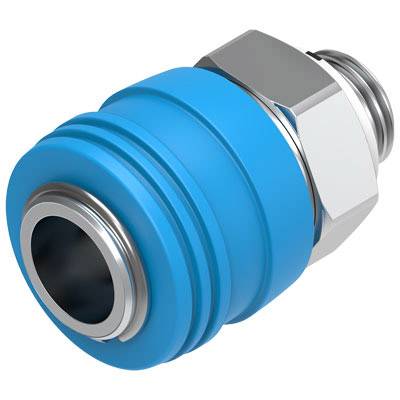

FESTO Connector 2143 KD4-1/4-A External thread: 1/4" (6.3 mm) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
Connector KD4-1/4-A
Technical specifications
- Oiled operation possible
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Connector
- External thread
1/4" (6.3 mm)
- Manufacturer part #
2143
- Vacuum
-0.95 bar
- Max. operating pressure
12 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO 8573-1:2010 [7:-:-]. Geölter Betrieb möglich
- Material properties
anti-corrosive
- Features
P port connector (G1/4)
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
