FESTO Connector 531636 KD4-1/4-I Internal thread G1/4" Pipe diameter: 7.2 mm Thread size: 1/4" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 4 Piece(s) available
Highlights & Details

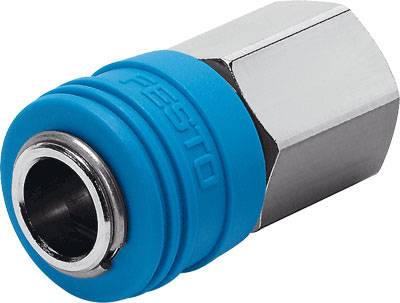

Connector KD4-1/4-I
Technical specifications
- Weight: 88 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Connector
- Pipe Ø
7.2 mm
- Thread size
1/4"
- Internal thread
G1/4"
- Manufacturer part #
531636
- Type
Coupling socket KD 4-1/4-I self resetting. Nominal diameter = 7.2 mm, normal rated flow = 1130 l/min, note for the operating and control medium = oiled operation possible
- Vacuum
-0.95 bar
- No. of ports
1 x
- Max. operating pressure
12 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO 8573-1:2010 [7:-:-]
- Material properties
anti-corrosive
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
