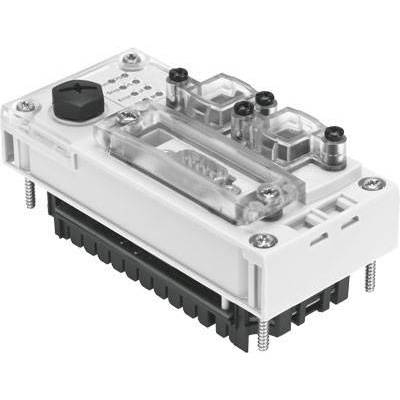

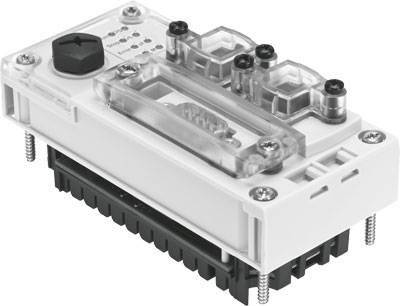

FESTO Controller unit 3472425 CPX-CEC-S1-V3 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 705.04 / piece)
€ 705.04
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: 50 mm x 107 mm x 55 mm
- Processing time: Approx. 200 µs/1 k instruction
- Controls: Rotary switch for RUN/Stop
- CPU DATA: 256 MB RAM
- 32 MB Flash
- Processor 800 MHz
- Data interface: RS232 interface
- D-sub, 9-pin, female
- 9.6 ... 230.4 kBit/s
- galvanically isolated
- Internal power consumption at operating voltage: Type. 85 mA
- IP address setting: DHCP
- About CoDeSys
- About MMI
- Ethernet, connector: RJ45
- jack
- 8-pole
- Ethernet, number: 1
- Ethernet, data transfer rate 10/100 Mbit/s.
- Ethernet, protocols supported: TCP/IP, EasyIP, Modbus TCP
- Ethernet interface: RJ 45 (female, 8-pin)
- Function blocks: Read CPX module diagnostics
- CPX diagnostic status
- Copy CPX diagnostic trace
- and others
- Device-specific diagnostics: Channel and module-oriented diagnostics
- Undervoltage/short circuit module
- Diagnostic memory
- Configuration support: CoDeSys V3
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Storage temperature: -20 ... 70 °C
- LED display bus-specific: TP: Link/Traffic
- LED display product-specific: ERR: PLC runtime error
- M: Modify/Force active
- PL: Load supply
- PS: Electronic supply, sensor supply
- Run: PLC status
- SF: System error
- Stop: PLC status
- Max. Cable length 30 m.
- Bit memory: 28 kB retentive data
- CoDeSys variable concept
- Nominal operating voltage DC 24 V.
- Rated operating voltage DC load voltage: Without pneumatics: 18 ... 30V
- 24 V
- With pneumatic type MIDI/Maxi: 21.6 ... 26.4V
- With type CPA pneumatics: 20.4 ... 26.4V
- With pneumatic type MPA: 18 ... 30V
- Mains failure bridging: 10 ms
- Parameterization: CoDeSys V3
- Product weight: 135 g
- Programming software: CoDeSys provided by Festo
- Programming language: According to IEC 61131-3
- Ladder diagram (LAD)
- Statement List (STL)
- Structured text
- Function diagram
- Procedural language
- Additional CFC
- Programming, operating language: De, EN
- Programming, support File handling: Yes
- Program memory: 16 MB user program
- Protocol: CoDeSys Level 2
- EasyIP
- Modbus TCP
- TCP/IP
- Relative humidity 95%
- not condensing
- IP65 rating
- IP67
- Serial interface, number: 1
- Ambient temperature: -5 ... 50 °C
- Material housing: PA-reinforced
- PC
- Material note: RoHS compliant
- Additional functions: Diagnostics functions
- Communication function RS232
- Product type
Controller unit
- Manufacturer part #
3472425
- Length
107 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204815 FESTO Controller unit 3472425 CPX-CEC-S1-V3 1 pc(s)
