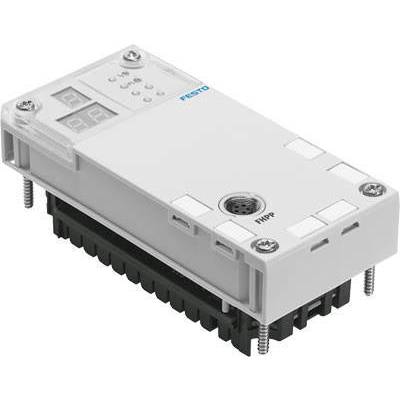

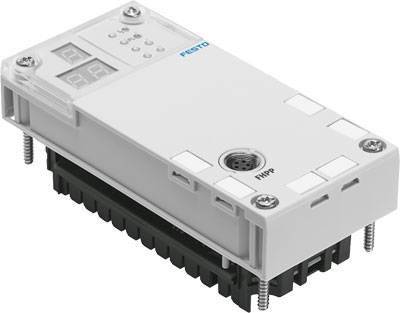

FESTO Controller unit 562214 CPX-CM-HPP 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: 50 mm x 107 mm x 55 mm
- Baud rate: 1 Mbps
- Operating voltage range DC: 18 ... 30 V
- CE mark (see declaration of conformity): According to EU low-voltage directive
- Control interface: Can bus
- Internal power consumption at operating voltage: Typically 80 mA
- Fieldbus interface: 1x socket M9, 5-pin
- Device-specific diagnostics: Channel and module-oriented diagnostics
- Undervoltage/short circuit module
- Diagnostic memory
- Total number of axes: 4
- Configuration support: MMI hand-held control device
- Storage temperature: -20 ... 70 °C
- LED display product-specific: Error
- PL: Load supply
- Max. Address volume outputs: 32 bytes
- Max. Address volume inputs: 32 bytes
- Nominal operating voltage DC 24 V.
- Mains failure bridging: 10 ms
- Parameterization: Forcing channels
- System parameters
- Product weight: 140 g
- Protocol: FHPP
- IP65 rating
- IP67
- Ambient temperature: -5 ... 50 °C
- Material housing: PA-reinforced
- PC
- Material note: RoHS compliant
- Product type
Controller unit
- Manufacturer part #
562214
- Length
107 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204494 FESTO Controller unit 562214 CPX-CM-HPP 1 pc(s)
