FESTO Coupling KD4-3/8-I 531637 -0.95 up to 12 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details

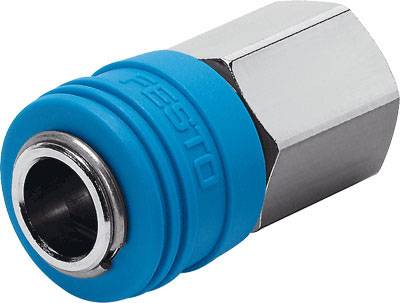

Coupling KD4-3/8-I
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Coupling
- Operating temperature
-10 up to 60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
60 °C
- Manufacturer part #
531637
- Connection
G 3/8"
- Max. operating pressure
12 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 12 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1940146 FESTO Coupling KD4-3/8-I 531637 -0.95 up to 12 bar
User & Safety Instructions
User & Safety Instructions 1940146 FESTO Coupling KD4-3/8-I 531637 -0.95 up to 12 bar
Description
Coupling socket KD 4-3/8-I self resetting. Nominal diameter = 7.2 mm, operating pressure complete temperature range = -0,95 - 12 bar, normal rated flow = 1350 l/min, according to ISO 8573-1:2010 operating medium = compressed air [7:-:-], note for the operating and control medium = oiled operation possible
