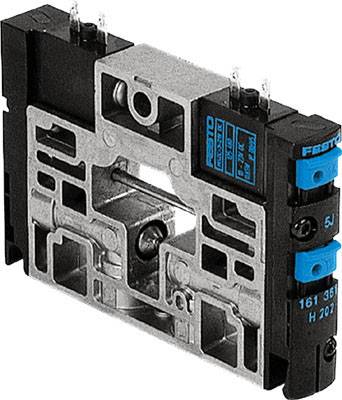

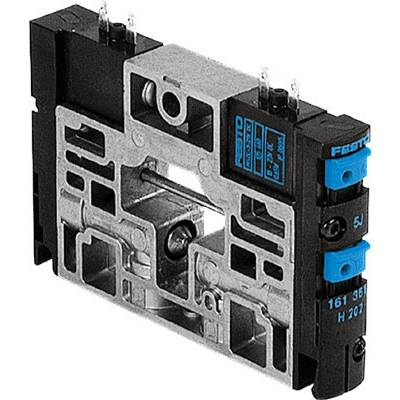

FESTO CPV14-M1H-2X3-GLS-1/8 161362 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Highlights & Details
Magnetic valve CPV14-M1H-2X3-GLS-1/8
Technical specifications
- Product type
Magnetic valve
- Function
3/2 normally closed mono-stable
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Media temperature (range)
-5 up to 50 °C
- Manufacturer part #
161362
- Type
Normal nominal flow rate: 800 l/min
- Connection
Multi-connector
G 1/8
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.9 bar
- Sealant
HNBR
NBR
- Enclosure material
POM
PPS
Aluminium (die-cast)
Brass
Steel
- Weight
120 g
- Max. media temperature
50 °C
- Media temperature (min.)
-5 °C
- Nominal width
6 mm
IP65
- Control pressure (max.)
8 bar
- Control pressure (min.)
3 bar
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 1940647 FESTO CPV14-M1H-2X3-GLS-1/8 161362 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940647 FESTO CPV14-M1H-2X3-GLS-1/8 161362 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
Information
Information 1940647 FESTO CPV14-M1H-2X3-GLS-1/8 161362 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
Description
The valve terminal CPV10 Ex-i: self-designed for use in hazardous areas according to ATEX category 2 (Zone 1).
Ideal for maximum flow in a small space.
Unique: the constructive design. For the flexible mix of pneumatic, electric connection techniques and versatile mounting types.
• High Flow at the smallest space
• Up to 16x 3/2-way valves per valve terminal
• A variety of valve functions
• Time-saving mounting and installation concept
• Pneumatic Multi-pin
• CPV is particularly suitable for decentralized system concepts
• High robustness by metal design of the Valves
• Pneumatic Multi-pin with wall continuity makes the installation in the control cabinet sealing IP65
This text is machine translated.
Ideal for maximum flow in a small space.
Unique: the constructive design. For the flexible mix of pneumatic, electric connection techniques and versatile mounting types.
• High Flow at the smallest space
• Up to 16x 3/2-way valves per valve terminal
• A variety of valve functions
• Time-saving mounting and installation concept
• Pneumatic Multi-pin
• CPV is particularly suitable for decentralized system concepts
• High robustness by metal design of the Valves
• Pneumatic Multi-pin with wall continuity makes the installation in the control cabinet sealing IP65
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
