FESTO CPVSC1-M1H-K-H-Q3C 547294 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details

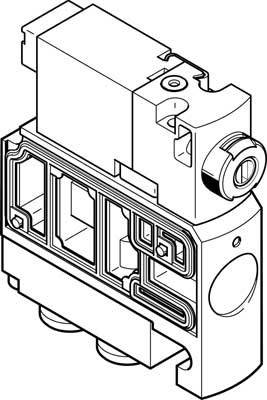

Magnetic valve CPVSC1-M1H-K-H-Q3C
Technical specifications
- Electrical connection: Plug, 2-pole
- Product type
Magnetic valve
- Function
3/2 normally closed mono-stable
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
- Media temperature (range)
-5 up to 50 °C
- Manufacturer part #
547294
- Type
Normal flow rate 170 l/min.
- Connection
Multi-connector
QS-3
- Max. operating pressure
7 bar
- Operating pressure (min.)
-0.9 bar
- Sealant
NBR
- Enclosure material
Aluminium (die-cast)
- Weight
30.5 g
- Max. media temperature
50 °C
- Media temperature (min.)
-5 °C
IP40
- Control pressure (max.)
7 bar
- Control pressure (min.)
3 bar
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 1941959 FESTO CPVSC1-M1H-K-H-Q3C 547294 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1941959 FESTO CPVSC1-M1H-K-H-Q3C 547294 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
Information
Information 1941959 FESTO CPVSC1-M1H-K-H-Q3C 547294 Magnetic valve 3/2 normally closed mono-stable 1 pc(s)
Description
Consistently thought-out:
The hard grid valve terminal CPV Smart Cubic
The CPV-SC takes place with a height of only 40 mm and a width of 40 mm and with 2 to 16 Valve Seats anywhere. Mounting via rail.
Consistently flexible
For more flexibility, the CPV Smart Cubic with a variety of selectable valve functions: 5/2-way, mono-stable, 5/2-way bi-stable, 3/2-way basic position closed or open and 2/2-way basic position is closed.
Consistently thought-out
Connectivity par excellence, e.g. in the pneumatic or electric connections. The practical pneumatic outputs from the front impress as well as the simple electrical connection options from the single connection, via sub-D plug, flat ribbon cable to the Profibus DP and DeviceNet. Last but not least, the multi-functional label holder for a permanent labelling and to cover the hand auxiliary lever.
This text is machine translated.
The hard grid valve terminal CPV Smart Cubic
The CPV-SC takes place with a height of only 40 mm and a width of 40 mm and with 2 to 16 Valve Seats anywhere. Mounting via rail.
Consistently flexible
For more flexibility, the CPV Smart Cubic with a variety of selectable valve functions: 5/2-way, mono-stable, 5/2-way bi-stable, 3/2-way basic position closed or open and 2/2-way basic position is closed.
Consistently thought-out
Connectivity par excellence, e.g. in the pneumatic or electric connections. The practical pneumatic outputs from the front impress as well as the simple electrical connection options from the single connection, via sub-D plug, flat ribbon cable to the Profibus DP and DeviceNet. Last but not least, the multi-functional label holder for a permanent labelling and to cover the hand auxiliary lever.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
