FESTO CPVSC1-M1H-N-P-Q3O 527556 Magnetic valve 3/2 normally open mono-stable Control (pneumatics) Profibus DPV1/RIO Mast
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

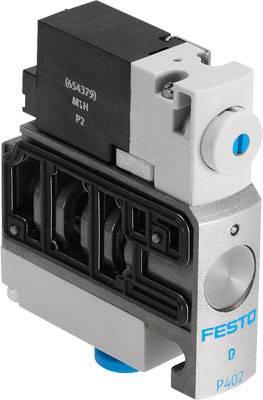

Magnetic valve CPVSC1-M1H-N-P-Q3O
Technical specifications
- Electrical connection: Plug, 2-pin
- Product type
Magnetic valve
- Function
3/2 normally open mono-stable
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Manufacturer part #
527556
- Type
Normal rated flow 170 l/min
- Connection
Multi-connector
QS-3
- Control
Profibus DPV1/RIO Master
- Max. operating pressure
7 bar
- Operating pressure (min.)
-0.9 bar
- Sealant
NBR
- Enclosure material
Aluminium (die-cast)
- Weight
30.5 g
- Width
40 mm
IP40
- Control pressure (max.)
7 bar
- Control pressure (min.)
3 bar
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1941312 FESTO CPVSC1-M1H-N-P-Q3O 527556 Magnetic valve 3/2 normally open mono-stable Control (pneumatics) Profibus DPV1/RIO Mast
User & Safety Instructions
User & Safety Instructions 1941312 FESTO CPVSC1-M1H-N-P-Q3O 527556 Magnetic valve 3/2 normally open mono-stable Control (pneumatics) Profibus DPV1/RIO Mast
Information
Information 1941312 FESTO CPVSC1-M1H-N-P-Q3O 527556 Magnetic valve 3/2 normally open mono-stable Control (pneumatics) Profibus DPV1/RIO Mast
Description
Consistently thought-out:
The hard grid valve terminal CPV Smart Cubic
The CPV-SC takes place with a height of only 40 mm and a width of 40 mm and with 2 to 16 Valve Seats anywhere. Mounting via rail.
Consistently flexible
For more flexibility, the CPV Smart Cubic with a variety of selectable valve functions: 5/2-way, mono-stable, 5/2-way bi-stable, 3/2-way basic position closed or open and 2/2-way basic position is closed.
Consistently thought-out
Connectivity par excellence, e.g. in the pneumatic or electric connections. The practical pneumatic outputs from the front impress as well as the simple electrical connection options from the single connection, via sub-D plug, flat ribbon cable to the Profibus DP and DeviceNet. Last but not least, the multi-functional label holder for a permanent labelling and to cover the hand auxiliary lever.
This text is machine translated.
The hard grid valve terminal CPV Smart Cubic
The CPV-SC takes place with a height of only 40 mm and a width of 40 mm and with 2 to 16 Valve Seats anywhere. Mounting via rail.
Consistently flexible
For more flexibility, the CPV Smart Cubic with a variety of selectable valve functions: 5/2-way, mono-stable, 5/2-way bi-stable, 3/2-way basic position closed or open and 2/2-way basic position is closed.
Consistently thought-out
Connectivity par excellence, e.g. in the pneumatic or electric connections. The practical pneumatic outputs from the front impress as well as the simple electrical connection options from the single connection, via sub-D plug, flat ribbon cable to the Profibus DP and DeviceNet. Last but not least, the multi-functional label holder for a permanent labelling and to cover the hand auxiliary lever.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
