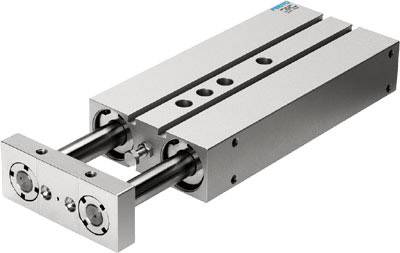

FESTO Dual piston cylinder 32705 DPZ-25-100-P-A Enclosure material: Aluminium wrought alloy Stroke length: 100 mm 1 pc(s
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 730.25 / piece)
€ 730.25
plus VAT.
14-day return policy included
Highlights & Details
Dual piston cylinder DPZ-25-100-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Dual piston cylinder
- Stroke length
100 mm
- Max. operating pressure
10 bar
- Material (details)
Housing: aluminum wrought alloy
- Manufacturer part #
32705
- Operating medium
Compressed air
- Sealant
NBR
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Steel
- Force (max.)
590 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
