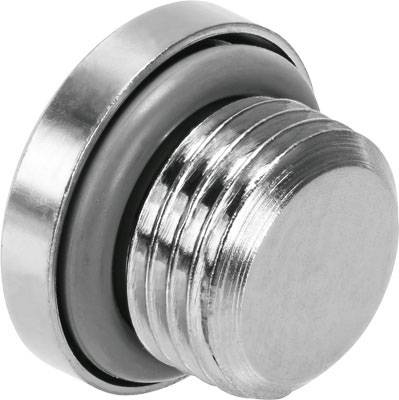

FESTO Filler plug NPQH-BK-M5-P10 578404 -0.95 up to 20 bar External thread M5
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details
Locking screw NPQH-BK-M5-P10
Technical specifications
- Size: Standard
- Container size: 10
- Weight 0.8 g
- Ambient temperature: 0 °C to +150 °C
- Max. Starting torque: 1.5 Nm
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Filler plug
- External thread
M5
- Type
Corrosion resistance class KBK: 3-strong corrosion stress
- Manufacturer part #
578404
- Material (details)
Brass, nickel plated
- Connection
M5
- Max. operating pressure
20 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 20 bar
- Operating medium
Compressed air
Water
Documents & Downloads
Datasheet
Datasheet 1945729 FESTO Filler plug NPQH-BK-M5-P10 578404 -0.95 up to 20 bar External thread M5
User & Safety Instructions
User & Safety Instructions 1945729 FESTO Filler plug NPQH-BK-M5-P10 578404 -0.95 up to 20 bar External thread M5
Description
Locking screw NPQH-BK-M5-P10 Size = Standard, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10, operating pressure complete temperature range = -0,95 - 20 bar
