FESTO Flow controller VMPA2-B8-R6C2-C-10 543347 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
14-day return policy included
Highlights & Details

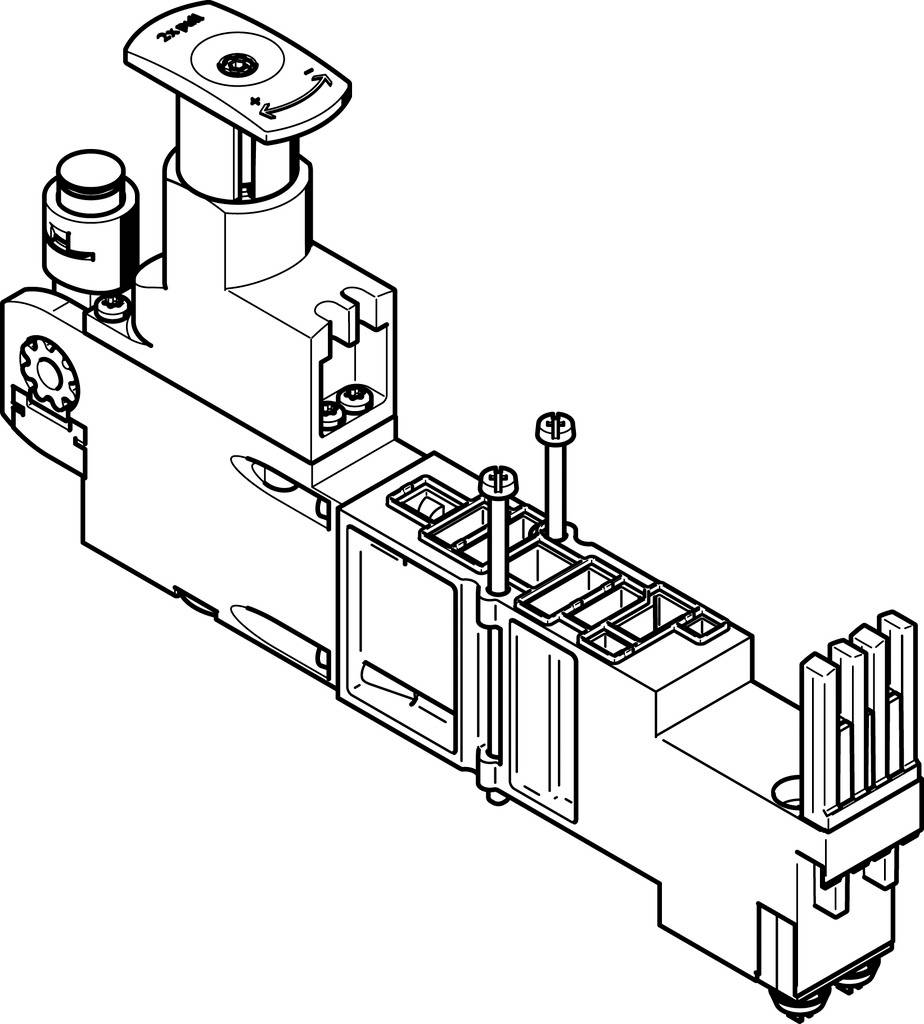

Flow controller VMPA2-B8-R6C2-C-10
Technical specifications
- Weight 180 g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Flow controller
- Content
1 pc(s)
- Manufacturer part #
543347
- Type
Control plate VMPA2-B8-R6C2-C-10 Width = 21 mm, mounting position=any, pneumatic height concatenation = pressure controller for 2 reversible, control function = (* output pressure constant, * with secondary bleeding), Zuwahl Manometer = possible
- Min. operating pressure
0.5 bar
- Max. operating pressure
10 bar
- Operating medium
Compressed air
- Operating temperature
-5 up to + 50 °C
- Max. operating temperature
+ 50 °C
- Min. operating temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1944536 FESTO Flow controller VMPA2-B8-R6C2-C-10 543347 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944536 FESTO Flow controller VMPA2-B8-R6C2-C-10 543347 1 pc(s)
