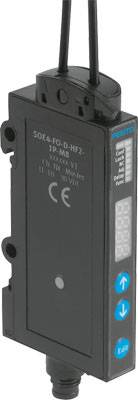

FESTO FO cable SOE4-FO-D-HF2-1N-M8 552800 1 pc(s)
EAN:
Part number:
Item no:
Product type
FO cable
Max. operating voltage
30 V DC
Connector
M8 plug (4-pin)
Type
SOE4-FO-D-HF2-1N-M8
Min. operating voltage
10 V DC
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Mounting type: With Through Hole, with top-hat rail
- Product type
FO cable
- Type
SOE4-FO-D-HF2-1N-M8
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M8 plug (4-pin)
- Enclosure material
Acrylonitrile butadiene styrene
IP64
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2120336 FESTO FO cable SOE4-FO-D-HF2-1N-M8 552800 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120336 FESTO FO cable SOE4-FO-D-HF2-1N-M8 552800 1 pc(s)
Description
Light conductor unit SOE4-FO-D-HF 2-1 N-M8 ideal for the material independent small parts recognition. Design = block construction, according to standard EN 60947-5-2, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = copper and PTFE-free
This text is machine translated.
This text is machine translated.
Hints
For more information on this 552800, please refer to its datasheet under 'downloadable documents'
