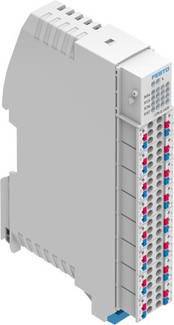

FESTO I/O module CPX-E-16DI 4080492 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H: 18.9 mm x 76.6 mm x 124.3 mm
- Fuse (short circuit): Internal electronic fuse per module
- Number of inputs: 16
- Mounting type: With DIN rail
- CE mark (see declaration of conformity): According to EU EMC directive
- Diagnostics via bus: Short circuit/overload sensor supply
- Diagnostics via LED: Errors per module
- Status per channel
- Internal power consumption at rated operating voltage of electronics/sensors: Type. 15 mA
- Input debounce time: 0.1 ms
- 3 ms
- 10 ms
- 20 ms.
- Electrical connection input, connection type: 8x terminal strip
- Electrical connection Input, connection technology: Spring-loaded terminal
- Electrical connection input, number of poles/wires: 6
- Electrical connection Input, function: Digital input
- Electrical connection input, note for conductor cross-section: 0.2 - 2.5 mm² for conductor flexible without wire-end sleeve
- Electrical connection input, conductor cross-section: 0.2 ... 1.5 mm2
- Note on ambient temperature: -5 - 60 °C for vertical installation
- Channel parameters: Signal extension
- Characteristics of inputs: According to IEC 61131-2, type 3
- Corrosion resistance class KBK: 0 - no corrosion stress
- Storage temperature: -20 ... 70 °C
- Max. Address volume inputs: 2 bytes
- Max. Total current inputs per module: 1.8 A.
- Module parameters: Sensor supply short circuit diagnostics
- Behavior after short circuit/overload
- Input verification time
- Signal extension time
- Nominal operating voltage DC electronics/sensors: 24 V.
- Potential separation channel - internal bus: No.
- Potential separation channel - channel: No.
- Product weight: 100 g
- Pitch: 18.9 mm
- Relative humidity 95%
- not condensing
- Switching logic inputs: PNP (positive switching)
- 2-wire sensors according to IEC 61131-2
- 3-wire sensors according to IEC 61131-2
- Switching level: Signal 0:< = 5 V.
- Signal 1:> = 11 V.
- Shock resistance: Shock test with sharpness 1 according to FN 942017-5 and EN 60068-2-27
- Protection class: IP20
- Vibration resistance: Transport application test with sharpening degree 1 according to FN 942017-4 and EN 60068-2-6
- Ambient temperature: -5 ... 50 °C
- Material housing: PA
- Material note: Substances containing labs contain
- Complies with RoHS
- Permissible voltage fluctuations electronics/sensors: ± 25 %
- Approval: RCM Mark
- Product type
I/O module
- Operating temperature
-5 °C (min)
- Manufacturer part #
4080492
- Station dimensions
18.9 mm
- No. of digital inputs
16
- Min. operating temperature
-5 °C
- Weight
102 g
- Material
PA
- Width
18.9 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204819 FESTO I/O module CPX-E-16DI 4080492 1 pc(s)
